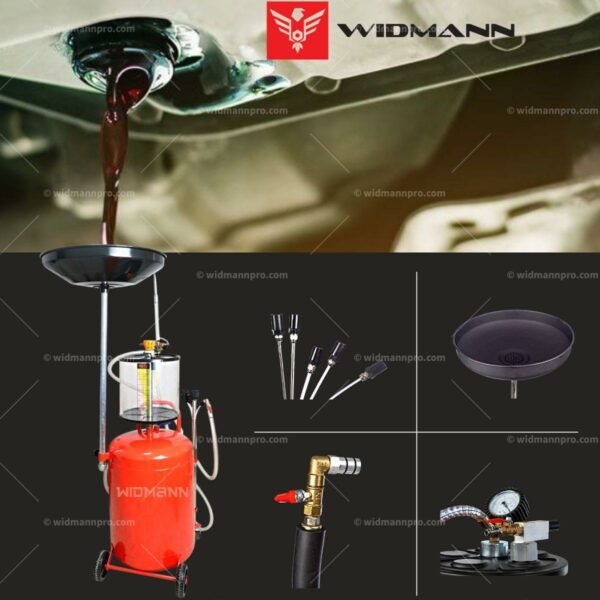

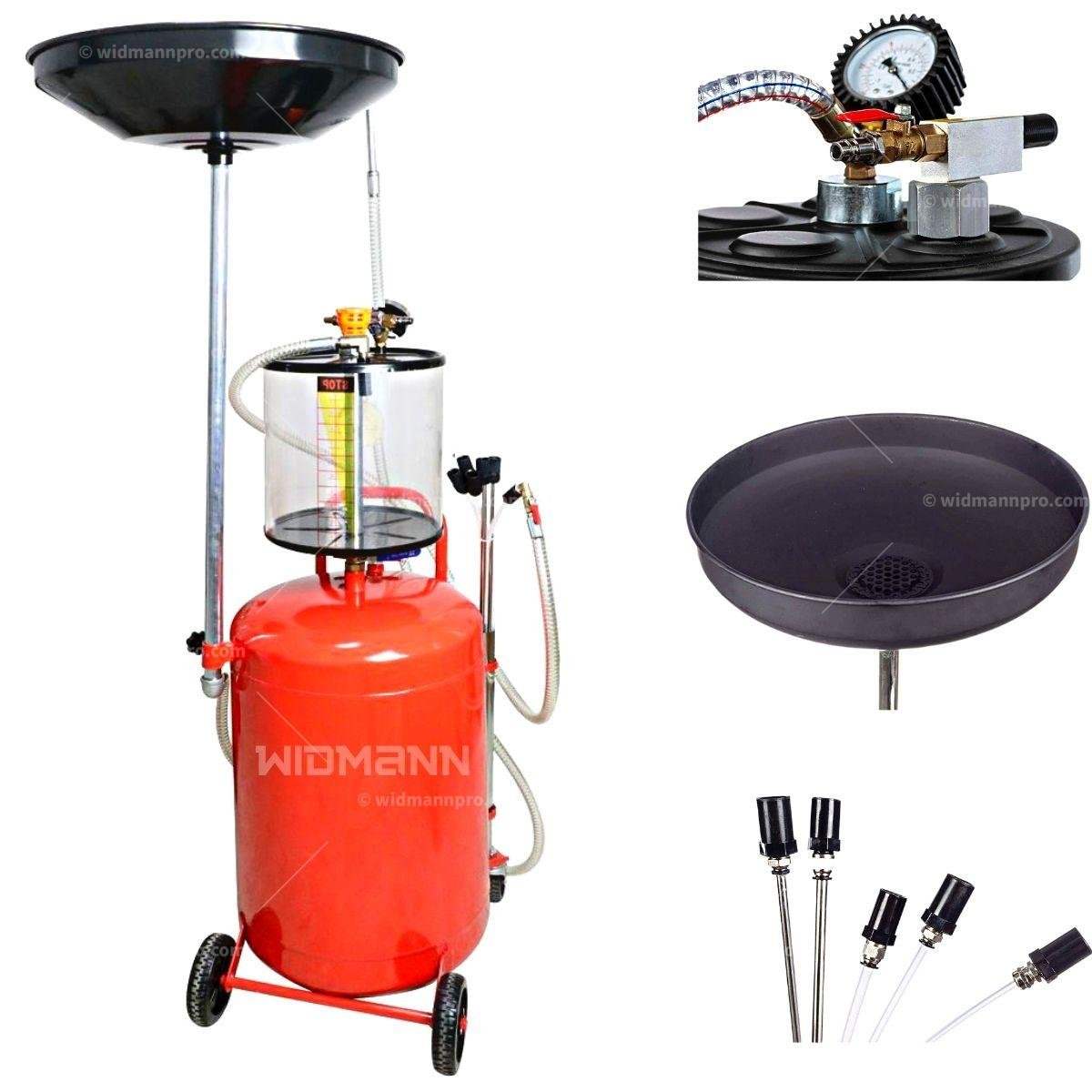

WIDMANN OIL COLLECTION MACHINE 80L

Description :

– The Widmann Drain Oil Collector is designed to provide a safe and affordable solution for quickly and effortlessly draining, emptying, transferring and disposing of engine or gearbox oils.

Excellent Performance
The extraction speed is 1.6 L / min and the operating pressure (8 bar) ensures working comfort and speed.

Large receptacle

Thanks to its bowl with a diameter of 40cm, there is no risk of putting it aside.

A large tank
The tank can hold up to 80 liters of used oil. The container is perfectly sealed, so there is no
no risk of leakage of used lubricant

– It can be used in the workshop for the collection of old and contaminated oil during an oil change.

– It is easy to drain the oil at low pressure.

– Multifunctional oil for collecting and filling.

– Transparent measuring cup for easy observation of the oil.

– Different types of jets are equipped depending on the condition of the oil.

Features :

– Tank volume: 80L

– Basin volume: 10L

– Vacuum degree: 0-(less)0.08Mpa

– Working air pressure: 8-10kg/cm

– Volume of the measuring cup: 10L

– Medium: Lubricating Oil

– Working oil temperature: 40-60℃

– Weight: 25 kg

– Pumping capacity from 0.6 to 1.6 liters per minute.

– Air consumption of approximately 200 liters per minute.

– Packaging dimensions (cm): 27x27x41 (measuring cup) 43x44x87 (Tank)

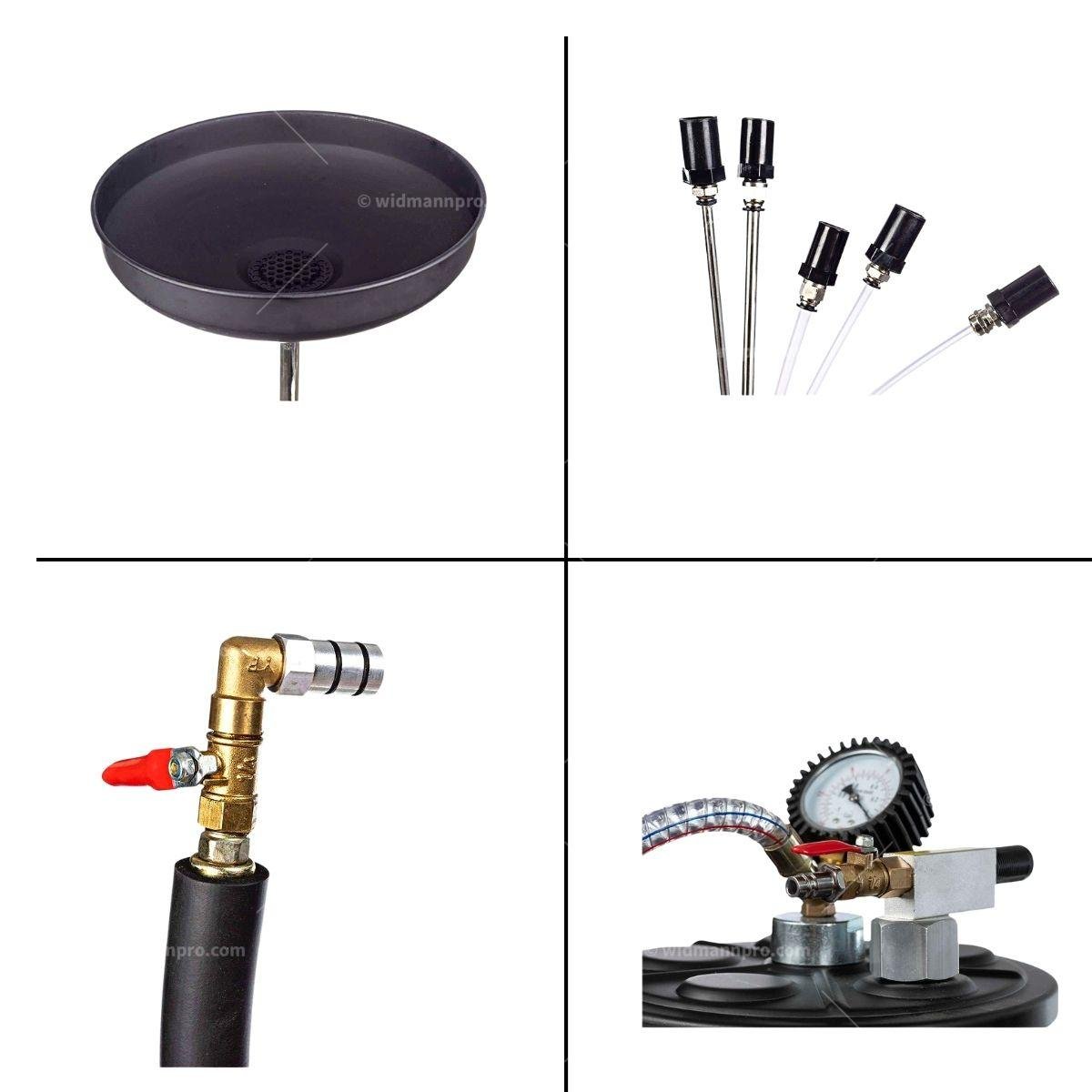

Included :

– 4 different adapters with flexible hose.

– Oil tank.

– Pressure indicator.

– Oil level reader.

– 4 wheels for heavy loads.
